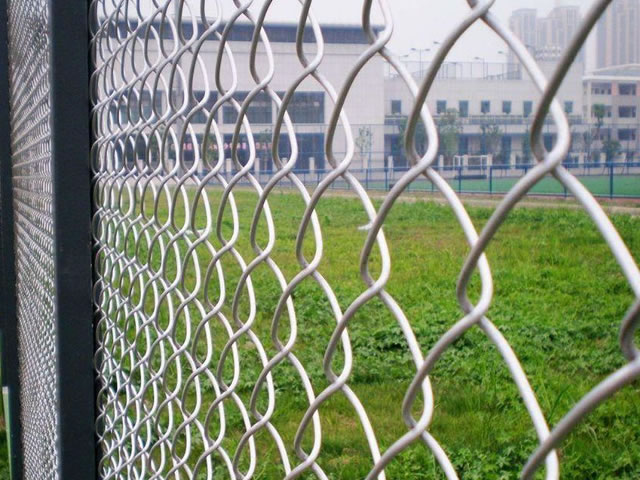

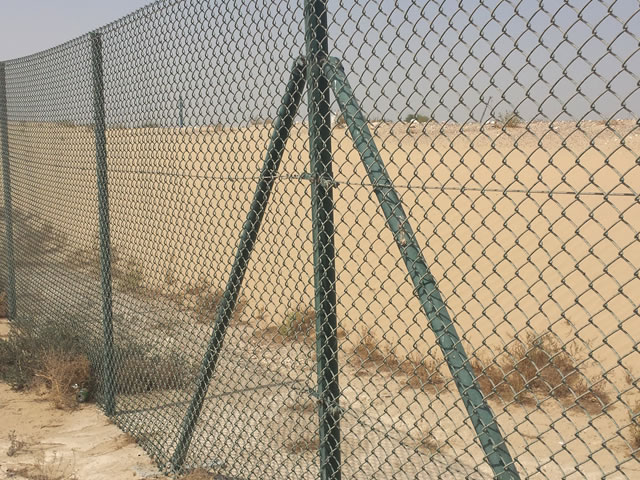

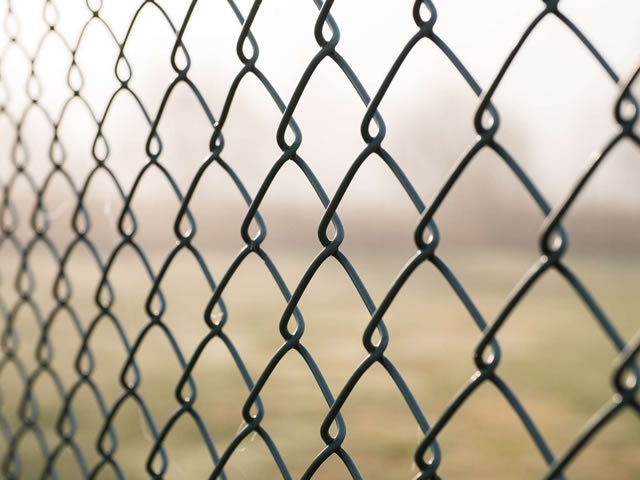

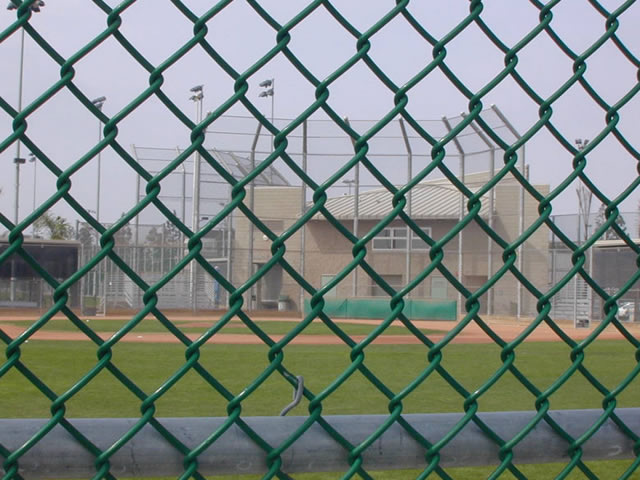

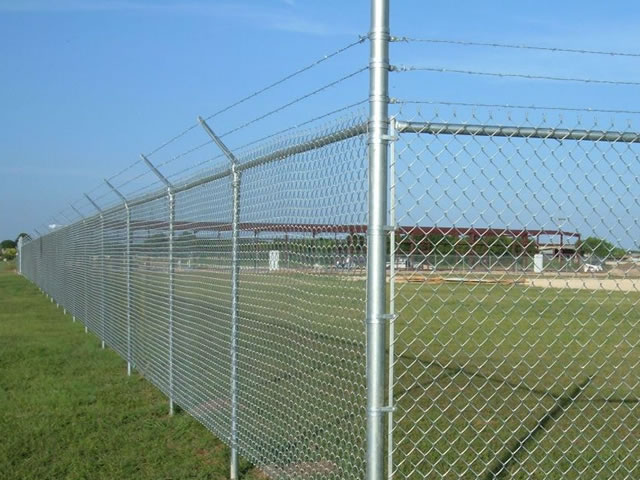

Chain Link Fence
Chain Link Fence is also named diamond wire mesh with the diamond opening. It is made with various metal wires weaving by chain link fence machine. Our chain link fence materials are available in stainless steel, galvanized, and PVC coated wire. They are normally used in gardens, sports yard, industrial sites, houses, roads and events for crowd control and school and field for farm.
Weaving and Features: Uniform opening, flat surface, simple weaving and practical use. Easy and flexible for installation and connecting. Traditional Chain-Link Fencing is the ideal choice for a smart, secure, boundary fences for industry. We produce industrial chain link fences with hot-dipped galvanized, PVC coated and stainless steel wires. The most popular is galvanized chain link fence, which has good resistance to water and atmospheric corrosion. However, PVC coated chain link durability is better than galvanized fence.
Chain Link Fence Specifications:
Fabric wire:zinc alloy/zinc coated wire, organic material wire, or stainless steel wire.
Tensile strength of wires
Low tensile (less than or equal to 600 N/m2);
High tensile (greater than 600 N/mm2).
Within any one delivered lot the tensile strength spread shall not exceed 150 N/mm2.
Chain link mesh size: 50*50 and 60*60 and 70*70 and 80*80 and 100*100 mm.

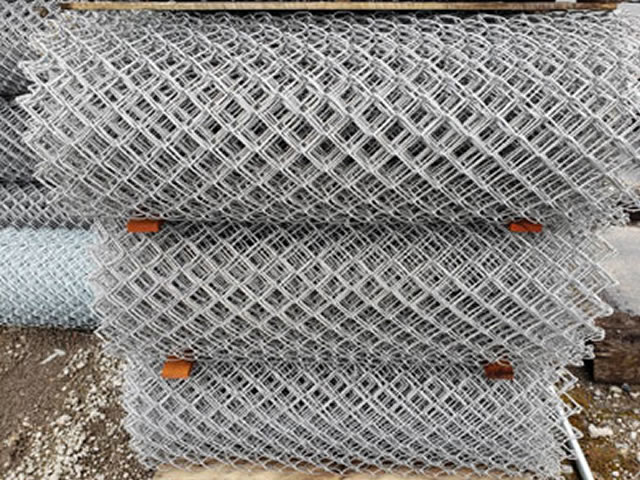

Packaging: chain link fencing mesh in 10m ,15m, 25 m or 50 m rolls.
Chain link mesh typical roll height: 0.5 m, 0.8 m, 0.9 m, 1.0 m, 1.2 m, 1.4 m, 1.5 m, 1.8 m, 2.0 m, 2.1 m, 2.4 m, 2.5 m, 3.0 m, 3.5 m, 3.6 m, 4.0 m.
Mesh | Nominal wire diameter (mm) | Tolerance on height (mm) | |
---|---|---|---|
Size (mm) | Tolerance (mm) | ||
Zinc alloy/zinc coated | |||
25 | ±2.0 | 2.0; 2.50 | ±30 |
40 | ±4.0 | 2.0; 2.50; 3.00; 3.55 | ±30 |
45 | ±4.0 | 2.0 | ±30 |
50 | ±4.5 | 2.0; 2.20; 2.50; 3.00; 3.55; 5.00 | ±40 |
60 | ±5.0 | 2.00; 2.20; 2.50; 3.00; 3.55; 5.00 | ±50 |
75 | ±5.0 | 2.50; 3.00 | ±60 |
Organic material (extruded) coating over a zinc/zinc alloy coated or bright wire | |||
25 | ±2.0 | 1.90/2.65 | ±30 |
40 | ±4.0 | 1.90/2.65; 2.00/3.00; 2.25/3.15; 2.50/3.55 | ±30 |
45 | ±4.0 | 1.70/2.50; 1.80/2.70; 1.90/2.65; 2.25/3.15; 2.50/3.55 | ±30 |
50 | ±4.5 | 1.70/2.50; 1.80/2.70; 2.00/3.00; 2.25/3.15; 2.50/3.55; 3.00/4.00; 3.55/4.75; 4.75/6.40 | ±40 |
60 | ±5.0 | 1.70/2.50; 1.80/2.70; 2.00/3.00; 2.20/3.40; 2.50/3.80; 2.80/4.20; 3.10/4.60; 3.80/5.00 | ±50 |
75 | ±5.0 | 2.00/3.00; 2.25/3.15 | ±60 |
