Welded Wire Mesh

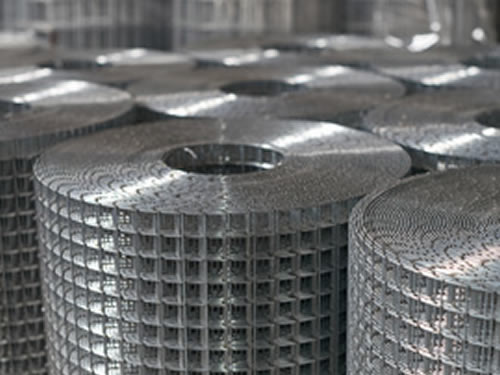

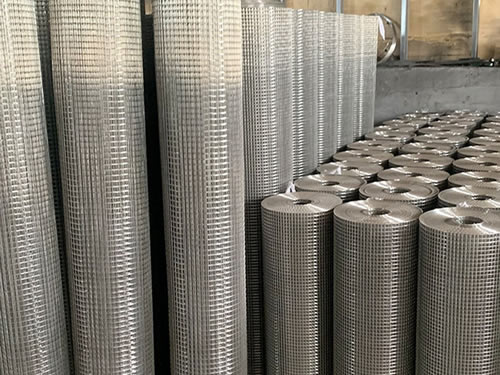

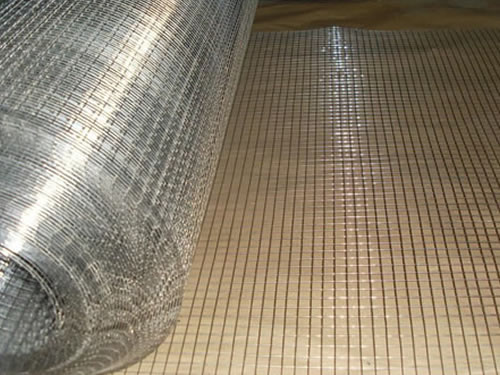

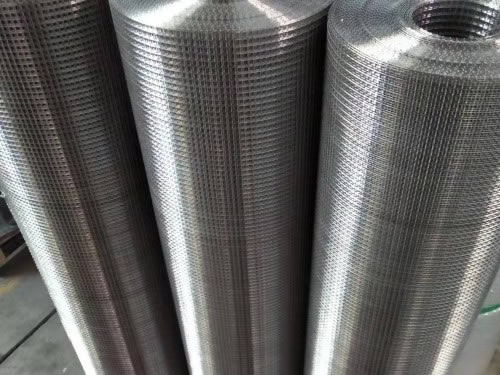

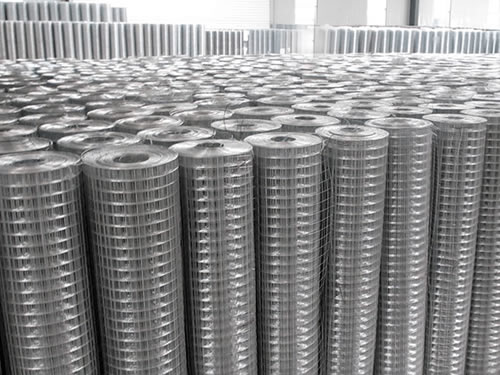

Stainless Steel Welded Wire Mesh

Stainless Steel welded wire mesh is made of high quality stainless steel 316, SS316L, SS304L,SS304HC, SS304,SS302 etc. The welding spot is very strong and firmly.

Strong corrosion protection and anti – oxidation. Firmly welding spot, high tensile strength, surface treatment, acid and alkaline resistance.

Stainless wire mesh is mainly used in mine, petroleum,chemic, food, medicine, car, aerospace, daily life, machine and so on.


Entertainment Facilities;
Civil Use: As security & isolation fencing for pedestrians’ pavement, transport center and other public places;
Agriculture and Forestry: Fencing for goats, horse fencing and fencing for farms and livestock;
Earth Surface Stability: Fabricated into containers, suitable for support of earth surface stability;
Mine Exploitation;
Industry & General Use: For machine protection, cage for equipment, support for cable and pipe, cover for fans and ventilation devices, etc.

Stainless steel welded wire mesh
mesh (inch)Wire dia (mm)Width (m)mesh (inch)Wire dia (mm)Width (m)
1/4×1/40.4-1.20.3-1.53/4×1.5 ”0.8-2.00.5-1.5
1/4×1/20.4-1.20.3-1.51.5 ”×1.5 ”0.8-2.00.5-2.1
1/4×1 ”0.4-1.20.3-1.51/2×1/20.4-2.00.3-2.1
3/8×3/80.4-1.20.5-1.51/2×1 ”0.4-2.00.3-2.1
3/8×3/40.4-1.20.5-1.51 ”×1 ”0.6-2.50.5-2.1
3/4×3/40.8-2.00.5-1.52 ”×2 ”0.6-2.50.5-2.1
Special sizes can be produced by order.
