Safety Planks Grating

When workers working in industrial,it is hard to avoid the accident rate that workers injured due to the risk of slipping.safety planks grating have the excellent anti slip ability,also high load capability to decrease the accident rate and guarantee the safety of the workers people.

Safety Grating Normally Used Materials:

Aluminum(5052),Stainless Steel(304 and 316L),Galvanized Steel Sheet,Carbon Steel,etc

Grip Strut Plank Grating

Materials: carbon steel, galvanized carbon steel, aluminum, stainless steel

 Thickness:2mm, 2.5mm, 3mm or custom

Channel Height: 2", 2-1/2", 3" or custom.

Width: 4-3/4", 7", 9-1/2", 11-3/4", 12-3/4"or custom

Length: 1m,2m,2.44m,3m or custom

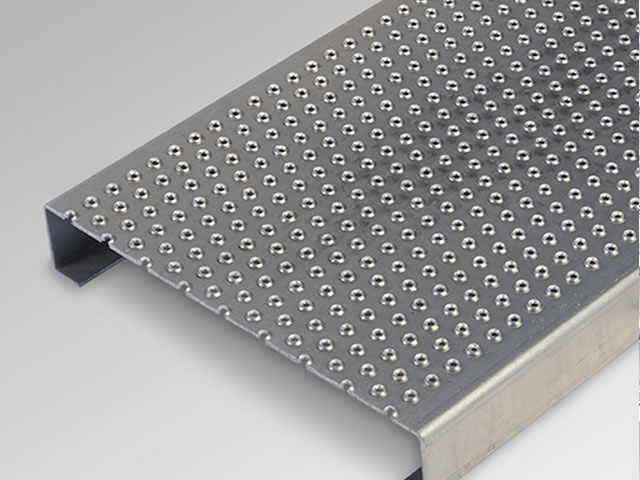

Perf-O Plank Grating

Materials: carbon steel, galvanized carbon steel, aluminum, stainless steel

Thickness:  1.5-3.5mm

Channel Height: 1-1/2", 2",3” or custom

Width: 5" (2-hole), 7" (3-hole), 10" (5-hole), 12" (6-hole), 18" (10-hole), 24" (13-hole) or custom

Length: 10', 12', 24' or custom

Traction-Tread Plank Grating

Materials: carbon steel, galvanized carbon steel, aluminum, stainless steel

Thickness:  1.5-3.5mm

Hole diameter: 3/8"

Channel Height: 1-1/2", 2",3” or custom

Width: 7", 10", 12" or custom
